5.70-8 Deestone D901 Trailer Tire 8 ply rated on 5 Hole Wheel

800689
Rating

Price is per tire/wheel assembly. Order qty 1 = 1 tire/wheel assembly ready to bolt on.

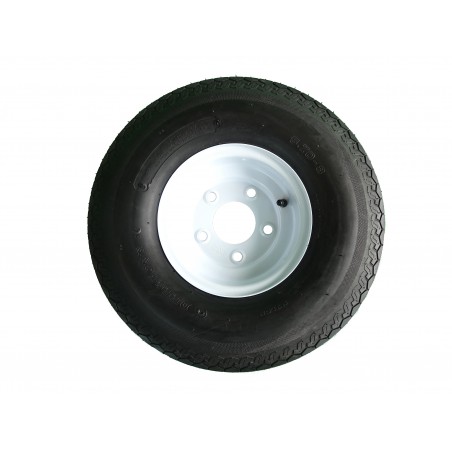

5.70-8 Deestone D901 Trailer Tire 8 ply rated Load Range D on 5 hole wheel with 4.5" bolt circle. See description for specs.

MPN: 800689

$42.00
Quantity
Last items in stock

Description

Price is per tire/wheel assembly. Order qty 1 = 1 tire mounted on a wheel ready to bolt on. New 5.70-8 Deestone brand D901 highway use DOT approved trailer tire on a new white painted 5 hole wheel with 4.5" bolt circle. These are load range D tires which are 8 ply rated to carry a max of 1075 lbs per tire at 100 psi. MEASURE YOUR WHEEL BEFORE ORDERING.

This is a standard size 5 hole bolt pattern used on most factory made trailers. Measuring a 5 hole bolt circle is tricky because two bolt holes aren't directly across from each other on the circle. A trick to measuring 5 bolt wheels is measure between the centers of two side by side holes. On a 5 on 4.5" bolt circle it will measure exactly 2 5/8" from center to center of two side by side lug holes, see the picture. If you are attempting to measure bolt circle on a 5 hole wheel you would actually measure from the center of one hole straight across to where a hole WOULD be if located directly across and on the same circle. The center hole size is roughly 2 3/4" however the center hole does not have to be the exact same size as your hub. It just needs to be large enough to go over it so the wheel can seat flat against the hub. These trailer wheels are stud piloted, that is they center on the tapered face of the lug nuts or bolts when tightened not the center hole.

Product Details

Deestone
800689
2 Items

Data sheet

Applications
Trailer
Tread Design
Highway
Ply Rating / Load Range
8 ply rated LR-D
Type
Tubeless
Construction
Bias

Reviews

No customer reviews for the moment.

Write your review

5.70-8 Deestone D901 Trailer Tire 8 ply rated on 5 Hole Wheel

5.70-8 Deestone D901 Trailer Tire 8 ply rated on 5 Hole Wheel

Price is per tire/wheel assembly. Order qty 1 = 1 tire/wheel assembly ready to bolt on.

5.70-8 Deestone D901 Trailer Tire 8 ply rated Load Range D on 5 hole wheel with 4.5" bolt circle. See description for specs.

MPN: 800689
